HFA (Highflow-A)
HFA cartridge filter are designed and developed to combines the advantages of depth filters and traditional pleated filters.
Features
Absolute Filtration
Good chemical compatibility
Melt-blown polypropylene media protects against shedding and particle unloading
All materials meet FDA listed for food and beverages
Applications
General process industry
Food & Beverage industry
Film & fiber industry
Electronic industry
Chemical / Petrochemical industry
Pharmaceutical industry
Specification
| Dimension & Structure | OD | 63.5 / 68 / 152 mm |
| ID | 28 / 30 / 75 mm | |
| Length | 250mm(10") / 500mm(20") / 750mm(30") / 1,000mm(40") | |
| Materials of Construction | Media | Meltblown polypropylene |
| Inner core | PP / Reinforced P.P / High Density P.E | |
| O-Ring & Gasket | NBR / EPDM / PP / Silicone / EPR / Viton | |
| Type | DOE / 226 Flat / 222 Flat / 226 Fin / 222 Fin / EO | |
| Operating Conditions | Max. differential pressure | 36PSI / 2.5bar 60℃ |
| 69PSI / 4.8bar 30℃ | ||
| Max. operating temperature | 80℃ | |
| 80℃ |

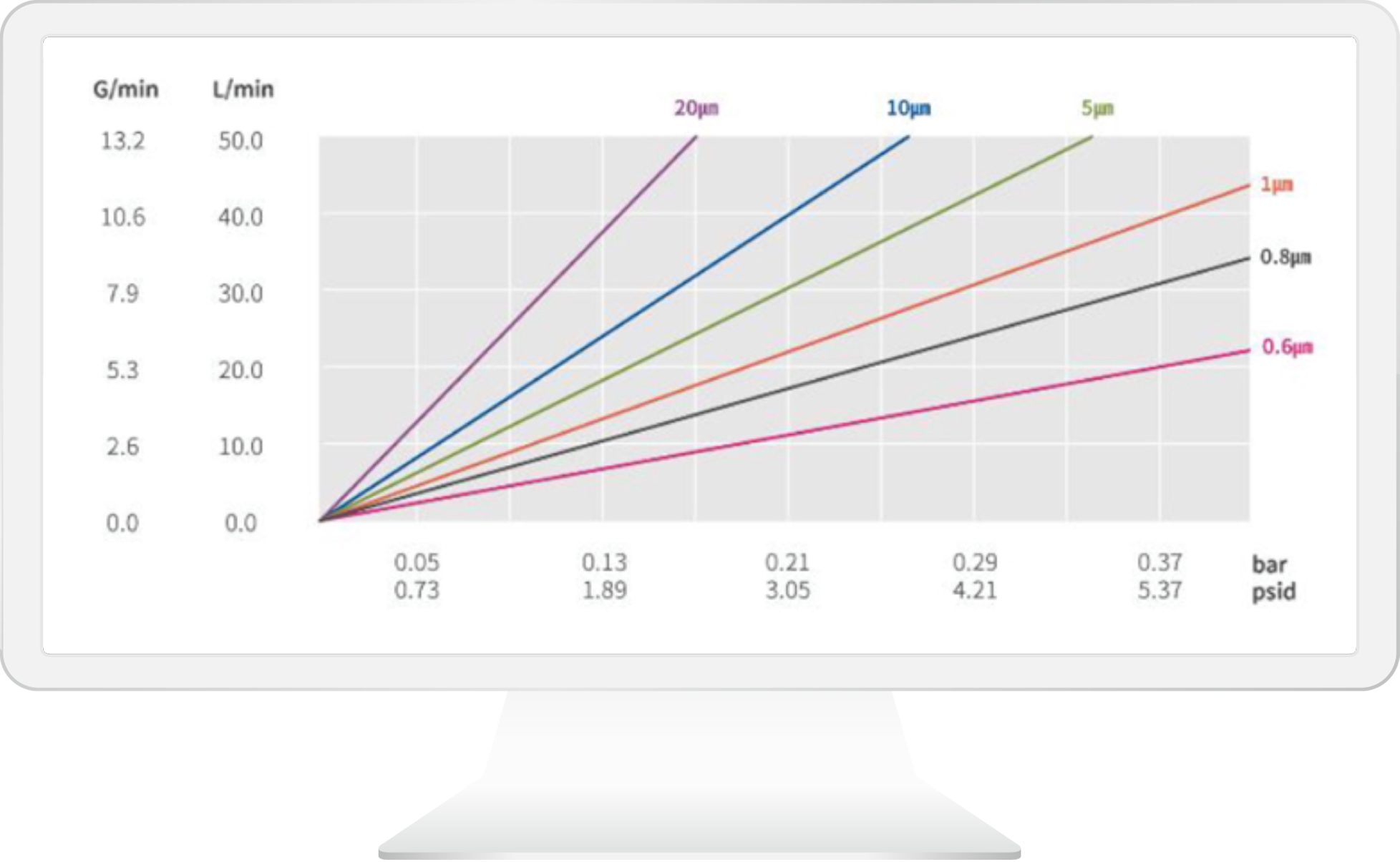

Pressure Drop (Water Flow Rate)
– 10 inch (250mm) Cartridge
Liquid Particle Removal Ratings
| Pore Size (µm) | β = 5,000 (99.90%) | β = 100 (99.00%) | β = 10 (90.00%) |
| 1 | <1 | <0.8 | <0.8 |
| 5 | 5 | 3 | <1 |
| 10 | 10 | 7 | 5 |
| 20 | 43 | 12 | 10 |
Ordering Information
| HFN | - | - | - | - | ||||||||
| Code-Size | Code-Micron | Code-Media | Code-Efficiency | |||||||||
| 210 | 2.5" x 10" | 004 | 0.45 | 01 | Polypropylene | 01 | Normal | |||||
| 220 | 2.5" x 20" | 006 | 0.6 | 02 | Absolute | |||||||
| 230 | 2.5" x 30" | 010 | 1 | |||||||||
| 240 | 2.5" x 40" | 030 | 3 | |||||||||
| 620 | 6" x 20" | 050 | 5 | |||||||||
| 640 | 6" x 40" | 100 | 10 | |||||||||
| 200 | 10 |
