HMS (MESH FILTER)
HBS basket strainers effectively remove large-sized particles ranging
Mesh 20 to 100 (840μm to 149μm) from liquids with viscosities
of up to 15,000 SSU. basket strainers are useful as prefilters for the collection of gross contaminants.
Features
Media Material : ASTM Type (304, 316, 316L)
Media Type : Wire mesh & Perforated plate
Cleanable standard Methods :
Steam back plusing
High pressure jet water
Ultrasonic
Chemical processing
Applications
Process water
Coolants
Lubricants
Paints
Food and Beverage Production
Chemical Process Filtration
Specification
| Dimension & Structure | OD | 80~1000mm |
| ID | - | |
| Length | 300~4000mm | |
| Materials of Construction | Media | 304SS / 316SS / 316LSS |
| Inner core | 304SS / 316SS / 316LSS | |
| Type | Bucket / Cone | |
| Operating Conditions | Max. differential pressure | 9 kgf/cm2 |
| Max. operating temperature | 1,000 °F (538°C) | |
| 1,000 °F (538°C) |

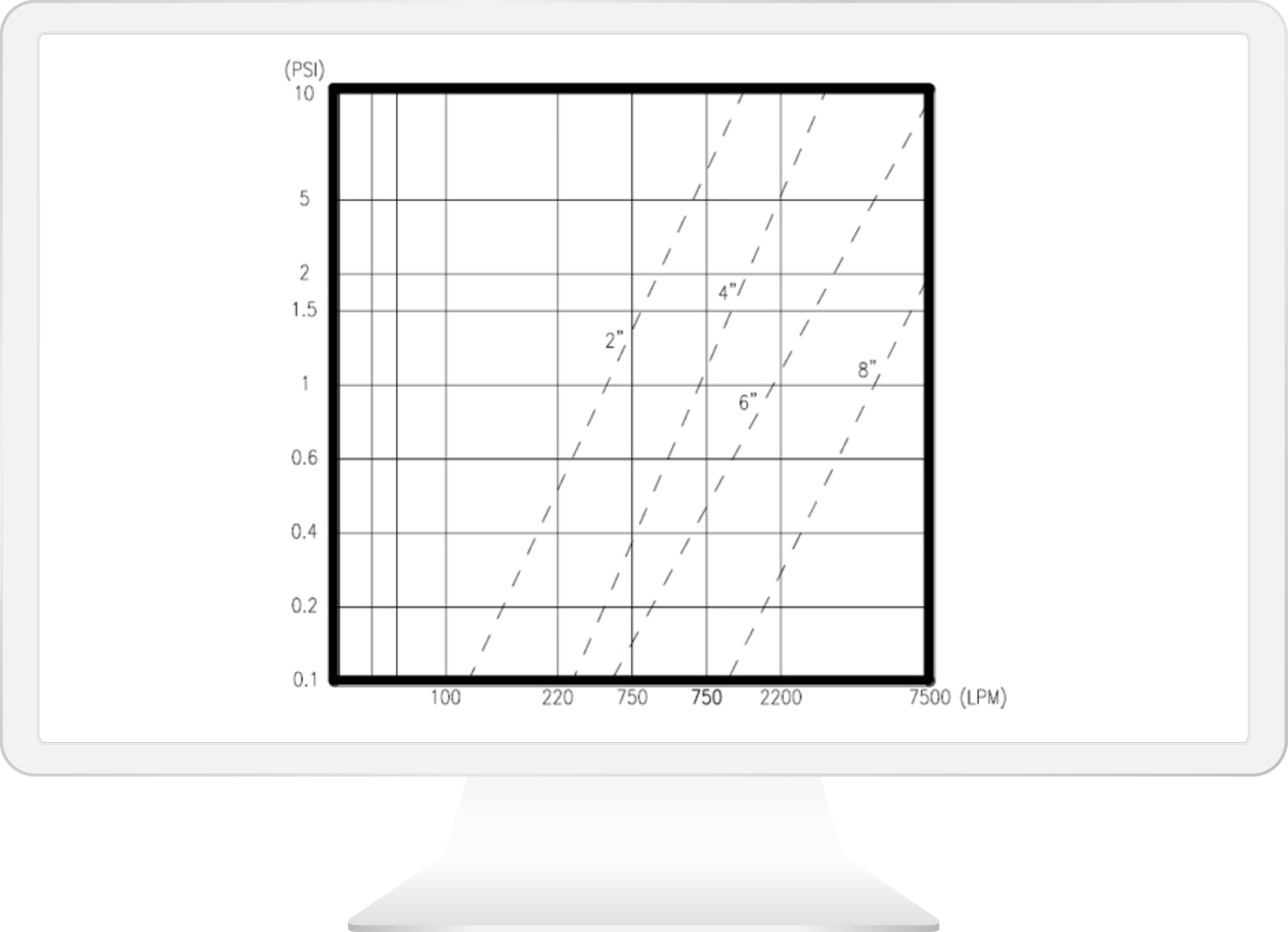

Pressure Drop (Water Flow Rate)
– Vessel nozzle size
Ordering Information
| HMS | - | 120 | - | 304 | - | B | ||
| Code-Size | Code-Media | Type | ||||||
| 20 | 20Mesh | 304 | B | Bucket | ||||
| 40 | 40Mesh | 316 | C | Cone | ||||
| 60 | 60Mesh | 316L | ||||||
| 80 | 80Mesh | |||||||
| 100 | 100Mesh | |||||||
| 120 | 120Mesh |
