HD (NON-WOVEN DEPTH)
Thermal bonded non-woven fabrics made from high quality polypropylene prevent any fiber migration
and ensure high efficiency in the inner media. PDF filter cartridges are suitable for water treatment,
Chemicals, Plating, Food & beverage and
Features
Low maintenance cost
Excellent chemical compatibility
Available on a wide range of materials and micron ratings
Applications
FDA Listed materials of construction for food and beverage contact
Chemical Industry
General Process Industry
Specification
| Dimension & Structure | OD | 63.5 mm |
| ID | 28 / 30 mm | |
| Length | 250mm(10") / 500mm(20") / 750mm(30") / 1,000mm(40") | |
| Materials of Construction | Media | polypropylene micro fiber |
| Inner core | Polypropylene | |
| O-Ring & Gasket | Silicone, EPDM, Viton, TEV & Foamed polyethylene | |
| Type | DOE / 226 Flat / 222 Flat / 226 Fin / 222 Fin / EO | |
| Operating Conditions | Max. differential pressure | 30 psid / 2.1 bar at 60℃ |
| 60 psid / 4.2 bar at 30℃ | ||
| Max. operating temperature | PP core 80℃ | |

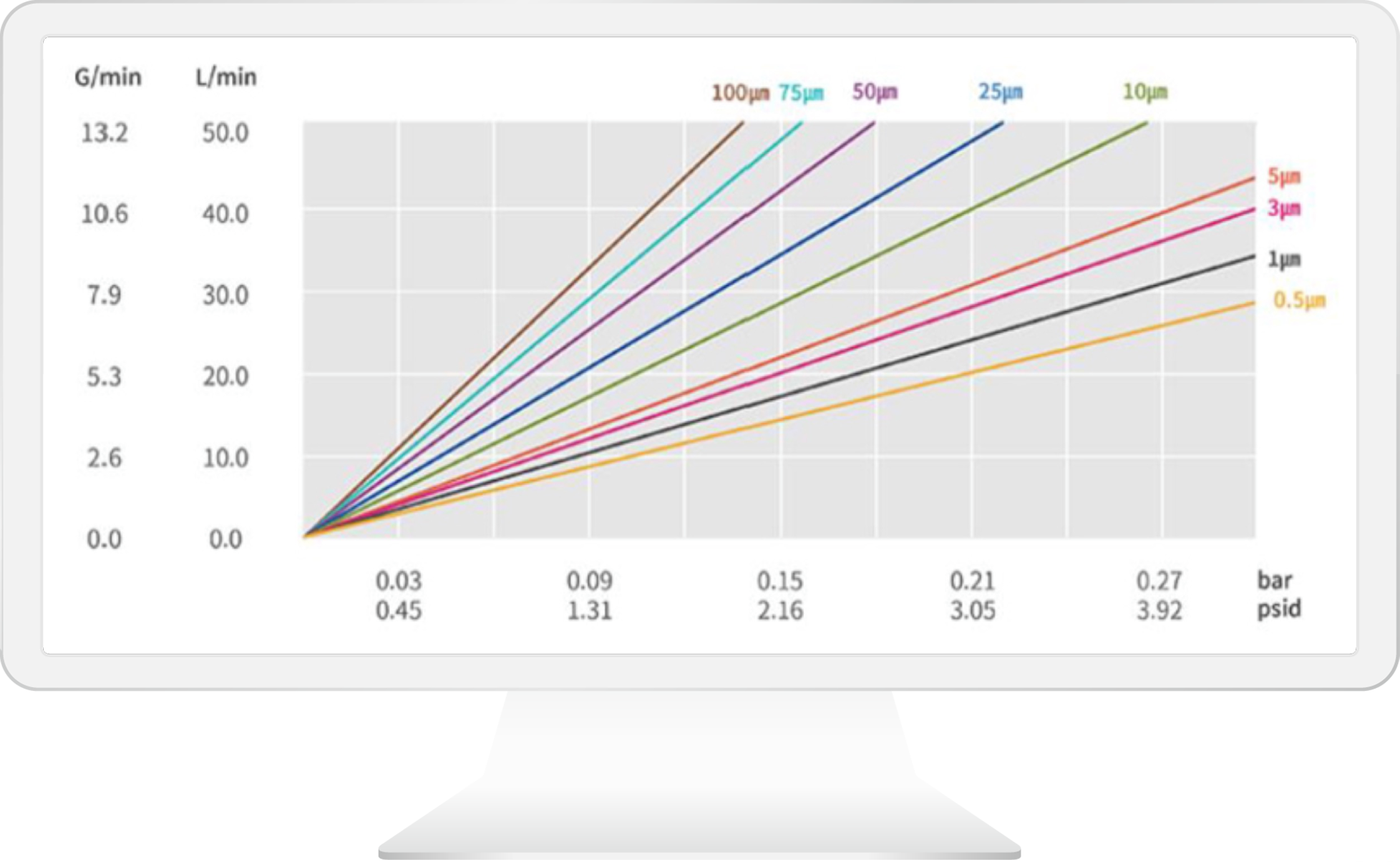

Pressure Drop (Water Flow Rate)
– 10 inch (250mm) Cartridge
Ordering Information
| HD | - | - | - | - | ||||||||
| Code-Size | Code-Micron | Code-Media | Code-Core | |||||||||
| 210 | 2.5" x 10" | 0005 | 0.5 | 001 | Polypropylene | A | PP | |||||
| 220 | 2.5" x 20" | 001 | 1 | |||||||||
| 230 | 2.5" x 30" | 003 | 3 | |||||||||
| 240 | 2.5" x 40" | 005 | 5 | |||||||||
| 010 | 10 | |||||||||||
| 025 | 25 | |||||||||||
| 050 | 50 | |||||||||||
| 075 | 75 | |||||||||||
| 1000 | 100 |
