AC (ACTIVATED CARBON FILTER)
One-step Carbon filter cartridges are made of activated carbon powder which eliminate the
problems associated with loose carbon treatment and the need for a separate filtration system.
Impurity in plating process & chlorine reduction from water
Features
Produced by burning or activating organic fiber
Vast area of average fine process
High speed for absorption and detachment more than twice compared to granular and sinks
Resistance of absorption movement and adsorbents minimized by small diameters
Applications
Plating process
Removal of color, odor, organics and dusts
Removal of volatile organic chemical
Purification of process water and waste water
Improvement of crystallization and de-solvent
Specification
| Dimension & Structure | OD | 62 mm |
| ID | 28 / 30 mm | |
| Length | 250mm(10") / 500mm(20") / 750mm(30") / 1,000mm(40") | |
| Materials of Construction | Media | Activated carbon powder |
| Inner core | Polypropylene | |
| O-Ring & Gasket | Silicone, EPDM, Viton, TEV & Foamed polyethylene | |
| Type | DOE / 226 Flat / 222 Flat / 226 Fin / 222 Fin / EO | |
| Operating Conditions | Max. differential pressure | 30 psid / 2.1 bar at 60℃ |
| 60 psid / 4.2 bar at 30℃ | ||
| Max. operating temperature | PP core 70℃ | |

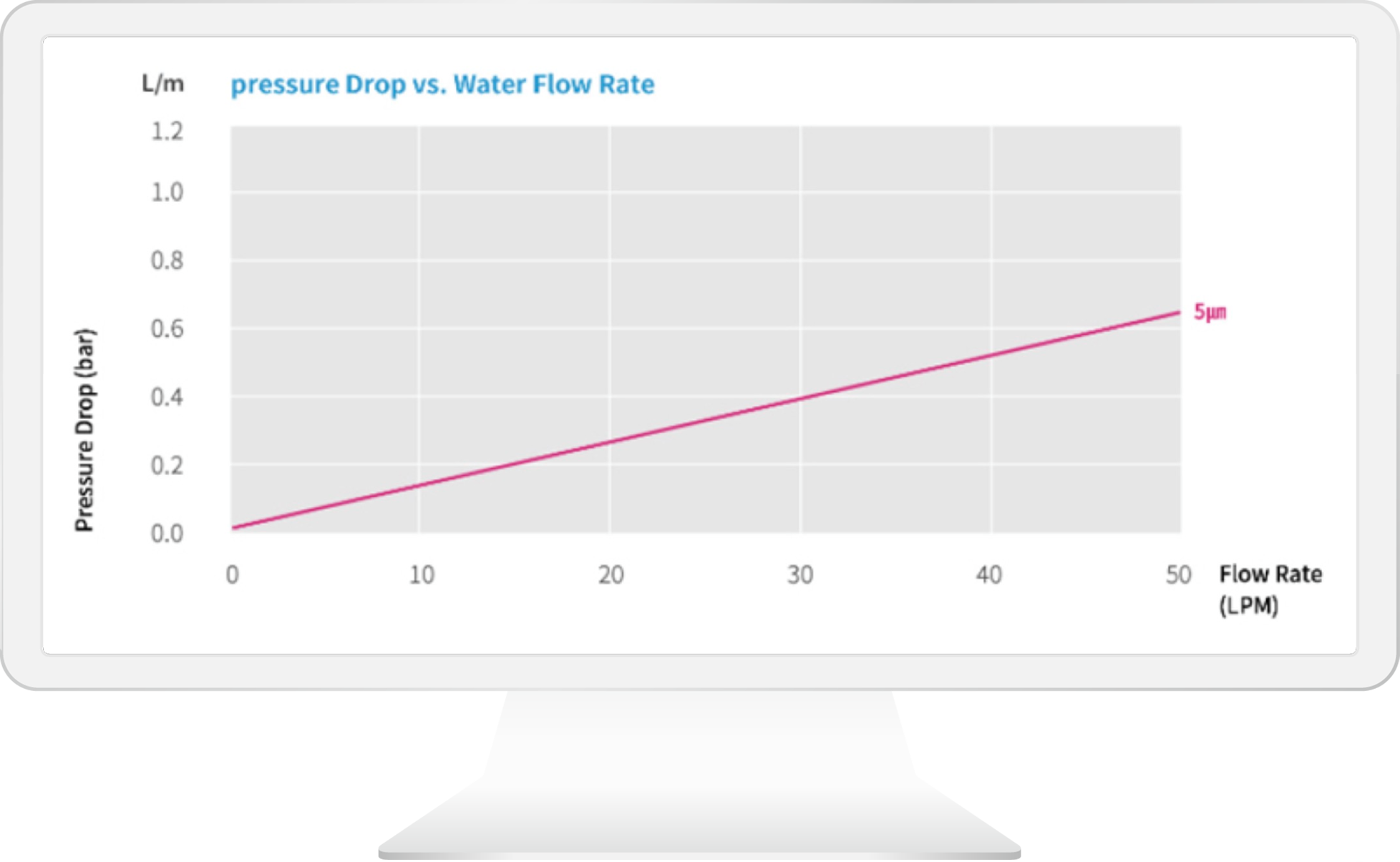

Pressure Drop (Water Flow Rate)
– 10 inch (250mm) Cartridge
Ordering Information
| AC | - | - | - | ||||||
| Code-Size | Code-Micron | Code-Core | |||||||
| 210 | 2.5" x 10" | 001 | Activated Carbon Fiber | 01 | PP | ||||
| 220 | 2.5" x 20" | 002 | Depth Activated Carbon | ||||||
| 230 | 2.5" x 30" | 003 | Granular Activated Carbon | ||||||
| 240 | 2.5" x 40" | ||||||||
