HFN (Highflow-N)
HFN cartridge filter are designed and developed to combines the advantages of depth filters and traditional pleated filters.
Features
100% all polypropylene
Good chemical compatibility
High particle removal efficiency as absolute rating
Gel and vicous Liquids remova capability
High folw rate & Long service life
Lower filtration costs
Fixed pore structure
Applications
General process industry
Food & Beverage industry
Film & fiber industry
Electronic industry
Chemical / Petrochemical industry
Pharmaceutical industry
Specification
| Dimension & Structure | OD | 63.5 / 68 / 152 mm |
| ID | 28 / 30 / 75 mm | |
| Length | 250mm("10") / 500mm("20") / 750mm("30") / 1,000mm("40") | |
| Materials of Construction | Media | Meltblown polypropylene |
| Inner core | PP / Reinforced P.P / High Density P.E | |
| O-Ring & Gasket | NBR / EPDM / PP / Silicone / EPR / Viton | |
| Type | DOE / 226 Flat / 222 Flat / 226 Fin / 222 Fin / EO | |
| Operating Conditions | Max. differential pressure | 30PSI / 2bar 60℃ |
| 60PSI / 4bar 30℃ | ||
| Max. operating temperature | 80℃ |

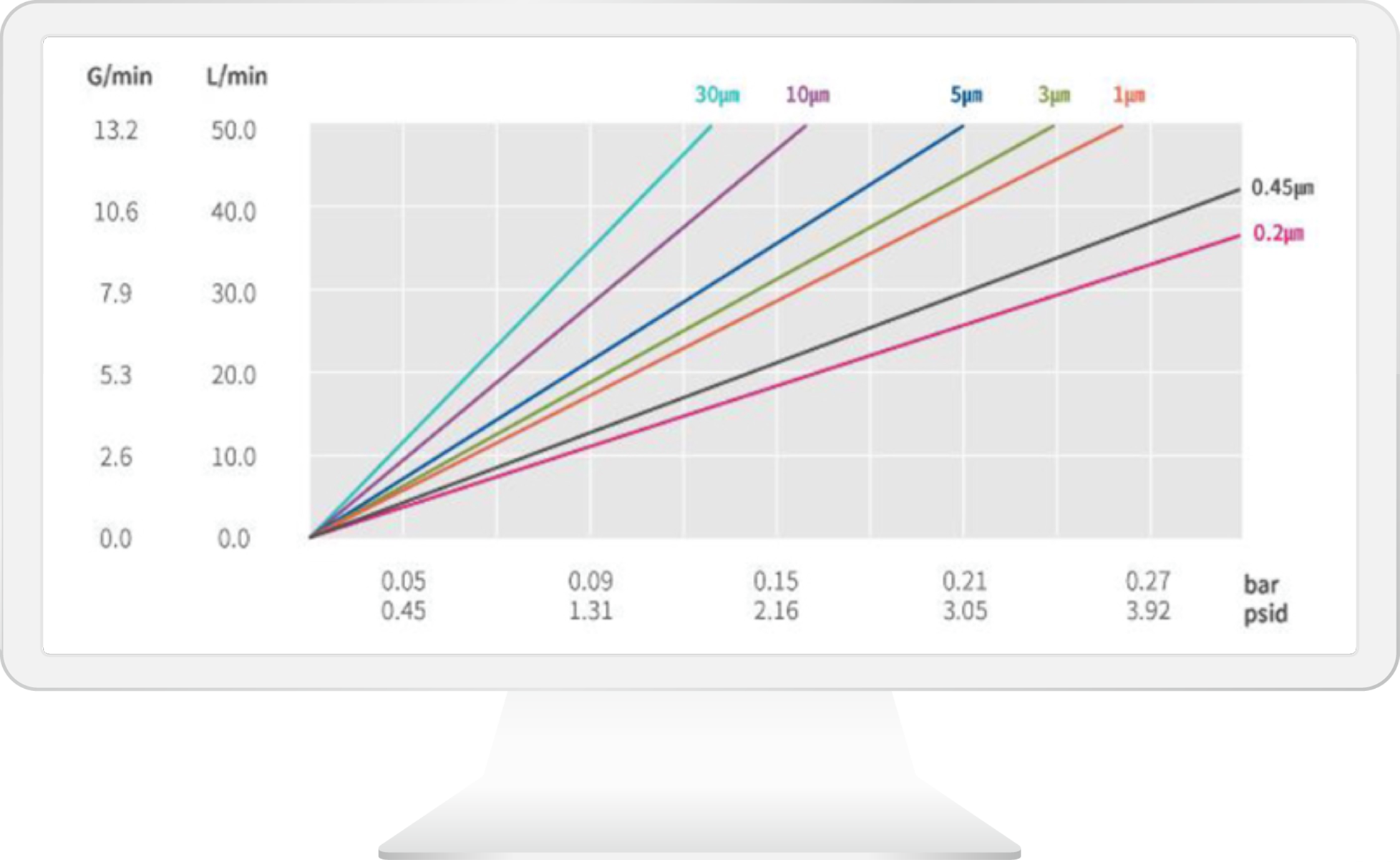

Pressure Drop (Water Flow Rate)
– 10 inch (250mm) Cartridge
Liquid Particle Removal Ratings
| Pore Size (µm) | β = 5,000 (99.90%) | β = 100 (99.00%) | β = 10 (90.00%) |
| 0.2 | < 1.9 | < 0.84 | < 0.45 |
| 0.45 | 4 | 2 | < 0.45 |
| 1 | 8 | 3.5 | < 0.8 |
| 3 | 12 | 7 | 2.8 |
| 5 | 20 | 1 | 4.5 |
| 10 | 27 | 15 | 8.5 |
| 30 | 43 | 31 | 26 |
Ordering Information
| HFN | - | - | - | - | ||||||||||
| Code-Size | Code-Micron | Code-Media | Code-Efficiency | |||||||||||
| 210 | 2.5" x 10" | 001 | 0.1 | 040 | 4 | 01 | Polypropylene | 01 | Normal | |||||
| 220 | 2.5" x 20" | 002 | 0.2 | 050 | 5 | 02 | Absolute | |||||||
| 230 | 2.5" x 30" | 004 | 0.45 | 100 | 10 | |||||||||
| 240 | 2.5" x 40" | 006 | 0.6 | 200 | 20 | |||||||||
| 620 | 6" x 20" | 010 | 1 | 300 | 30 | |||||||||
| 640 | 6" x 40" | 030 | 3 | 500 | 50 |
