HB1 (Highflow Filter)
HB1 cartridge filter are designed and developed to combines the advantages of depth filters and traditional pleated filters.
Features
100% all polypropylene
Good chemical compatibility
High particle removal efficiency as absolute rating
Gel and vicous Liquids remova capability
High folw rate & Long service life
Lower filtration costs
Fixed pore structure
Applications
General process industry
Food & Beverage industry
Film & fiber industry
Electronic industry
Chemical / Petrochemical industry
Pharmaceutical industry
Specification
| Dimension & Structure | OD | 152 mm |
| Dimension & Structure | ID | 97 mm |
| Dimension & Structure | Length | 500mm(20") / 750mm(30") / 1,000mm(40") |
| Materials of Construction | Media | Polypropylene, PES, PTFE, PP membrane, Fiber glass |
| Materials of Construction | Inner core | PP / Reinforced P.P |
| Materials of Construction | O-Ring & Gasket | NBR / EPDM / Silicone / Viton |
| Materials of Construction | Type | SOE Flat |
| Operating Conditions | Max. differential pressure | 30PSI / 2bar 60℃ |
| Operating Conditions | Max. operating temperature | 60PSI / 4bar 30℃ |
| Dimension & Structure | Max. operating temperature | 80℃ |

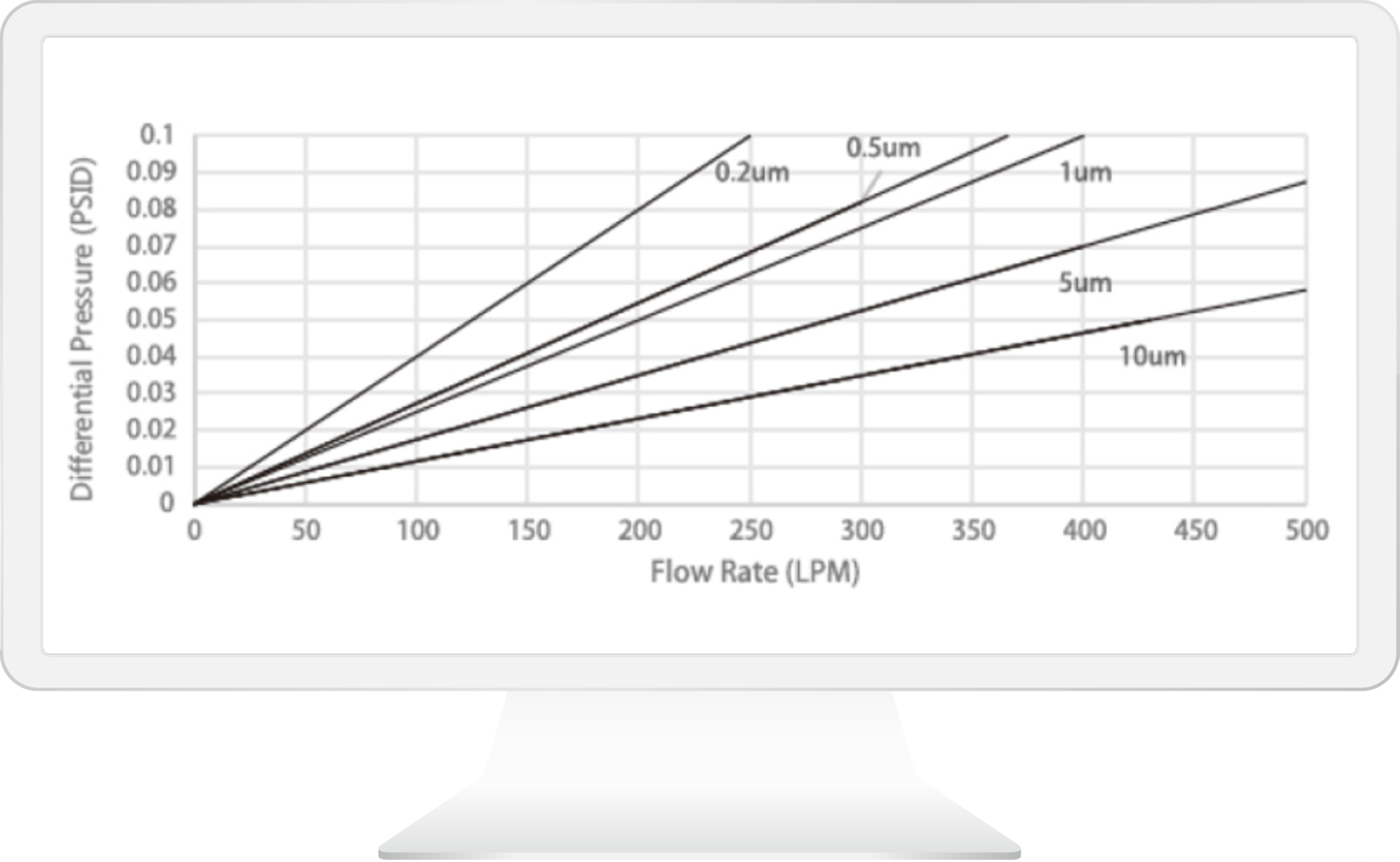

Pressure Drop (Water Flow Rate)
– 40 inch (1,000mm) Cartridge
Liquid Particle Removal Ratings
| Pore Size (µm) | β = 5,000 (99.90%) | β = 100 (99.00%) | β = 10 (90.00%) |
| 0.2 | < 2.2 | < 1.2 | < 0.3 |
| 0.45 | 4.6 | 2.5 | < 0.53 |
| 1 | 12 | 4.1 | < 0.9 |
| 3 | 17 | 7.9 | 2.95 |
| 5 | 22.95 | 12 | 4.8 |
| 10 | 33 | 16 | 8.8 |
| 30 | 36.55 | 36 | 29.4 |
Ordering Information
| HB1 | - | - | - | - | ||||||||||
| Code-Size | Code-Micron | Code-Media | Code-Efficiency | |||||||||||
| 620 | 6" x 20" | 001 | 0.1 | 040 | 4 | 01 | Polypropylene | 01 | Normal | |||||
| 630 | 6" x 30" | 002 | 0.2 | 050 | 5 | 02 | PES | 02 | Absolute | |||||
| 640 | 6" x 40" | 004 | 0.45 | 100 | 10 | 03 | PTFE | |||||||
| 006 | 0.6 | 200 | 20 | |||||||||||
| 010 | 1 | 300 | 30 | |||||||||||
| 030 | 3 | 500 | 50 |
